EMR - Multi service platform

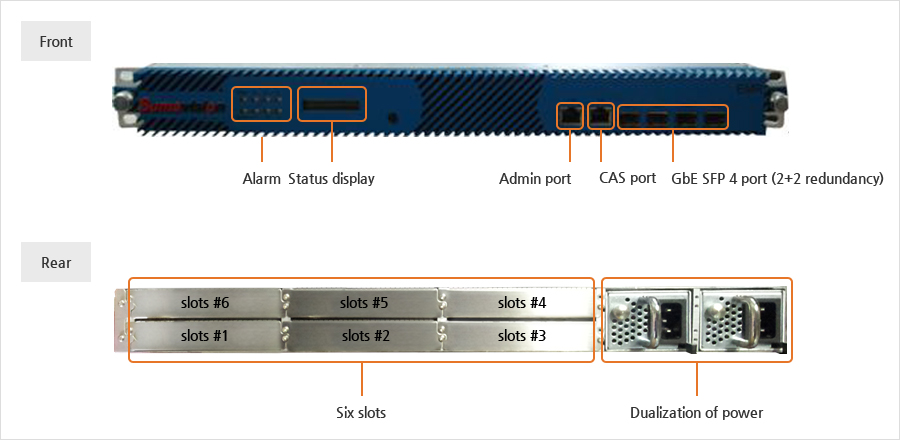

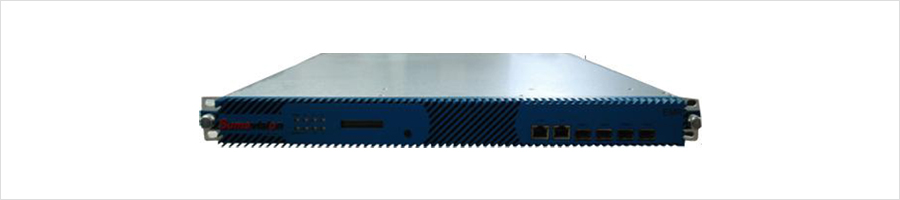

EMR(Enhanced Multimedia Router)

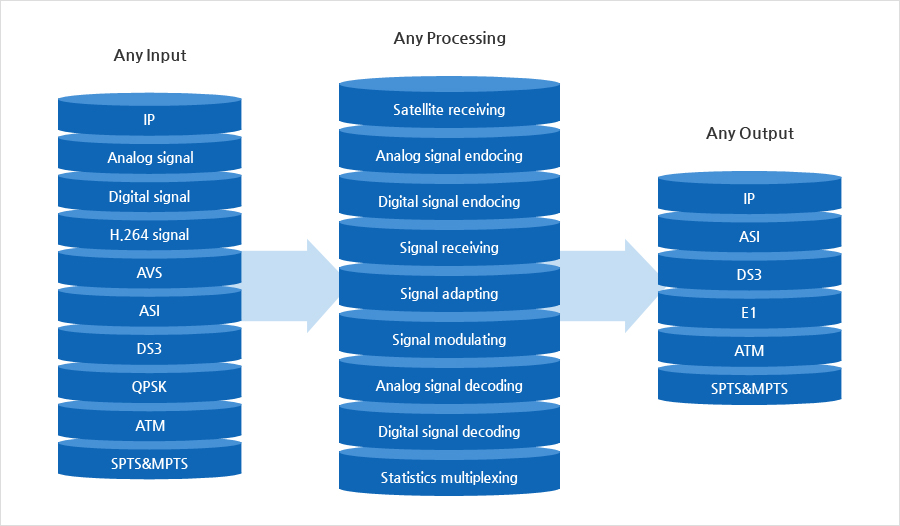

EMR – Three ‘Any’ Technology

  • Any input, any signal, any output!
  • Users can mix and match any combination!

Example of EMR

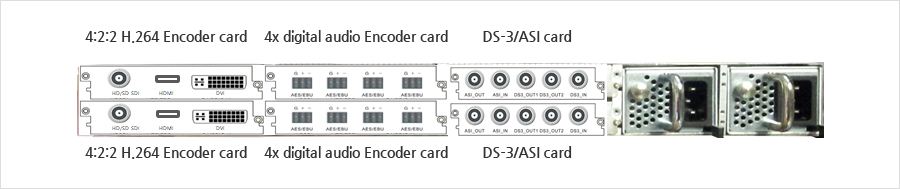

(Case 1) 4:2:2 H.264 HD Dual Channel Encoder
  • Input: 2 x HD-SDI / HDMI, 8-channel digital audio
  • Output: GbE IP, ASI, DS-3, 2 independent signals
  • Configuration

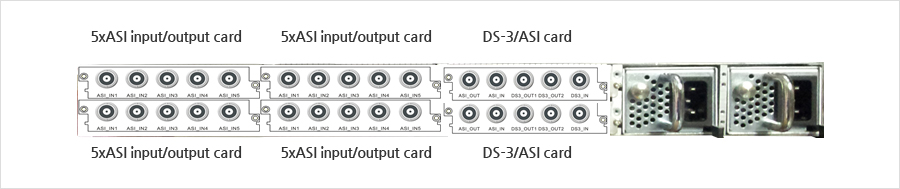

(Case 2) Multi-interface MUX
  • Input: 20 x ASI, independent 2 x DS-3
  • Output: GbE IP, ASI, DS-3, 2 independent signals
  • Configuration

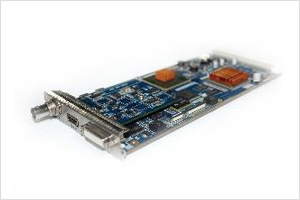

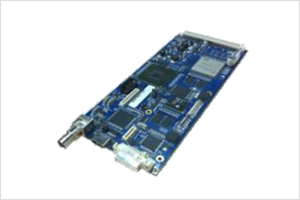

EMR – H.264 Encoder Card

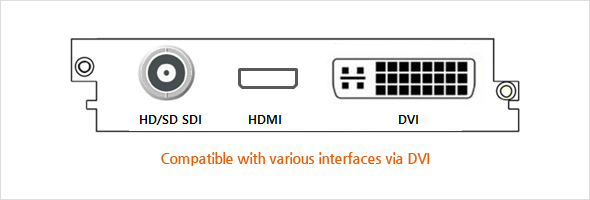

Input and output int
Video
  • 1 x HD-SDI
  • 1 × HDMI
  • 1 x YPbPr, extended via DVI
  • 1 x CVBS, extended via DVI
Audio
  • 1 × HD-SDI, embedded audio (4 in 8)
  • 1 × HDMI, embedded audio (4 in 4)
  • 4 × AES/EBU, extended via DVI
  • 2 × analog stereo audio, extended via DVI
Video encoding
  • Baseline, Main, High, High4:2:2
  • 0.1Mb/s - 25Mb/s Encoding bitrate
  • Pre-processing : de-interlacing, noise reduction, sharpen
  • Encoding delay: 700ms (50ms with Low Delay option)
Audio encoding
  • MPEG Layer2、AAC-LC、HE-AAC v1/v2、Dolby Digital
  • Audio pass-through

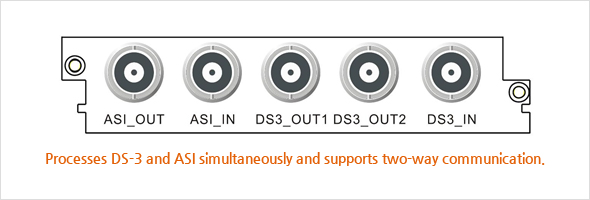

EMR – DS-3 converter card

Input and output interface
  • Input : 1×DS3, 1xASI
  • Output : 2×DS3, 1xASI
Signal processing
  • Processes ASI and DS signals simultaneously.
  • ASI ← → DS-3 Two-way communication
  • Protocol compatibility : Ericsson, Philips, Harmonic, Thomson ect.

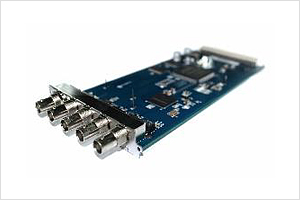

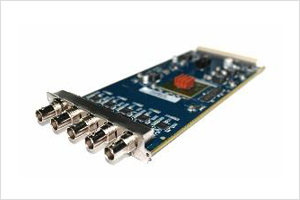

EMR – ASI input/output card

Interface
  • 5 x ASI input or output (selectable)
Redundancy (auto-switching) feature
  • Supports redundancy configuration for each port, card, and program.

EMR Features

  • Max. 8.5 data processing (internal MUX).
  • Max. 24 IRDsfor DVB-S/S2 available (receives non-encrypted signals).
  • Max. 6 IRDs for DVB-S/S2 available (receives encrypted signals).
  • Supports multi-encoding : SD&HD, MPEG-2&H.264
  • Max. Encoding & decoding up to 12 channels.
  • Max. 36 QAM output.
  • Max. 30 ASI input or 24 ASI output.
  • Max. 8 GbE IP input & output.
  • Max. 512 stream/2048 channel scramble over IP
  • Supports dualized power and Hot-Swap.
